Recently, I tried to deploy cyberaide filetransfer gadget (http://lily01.rit.edu/cyberaideFiletransfer.xml) and jobman gadget (http://lily01.rit.edu/cyberaideJobman.xml). They did NOT work in shindig server built from revision 832845. Those two gadgets use ‘tab’ feature which is not implemented well in shindig code.
Problem description
See source code of tab feature at http://svn.apache.org/repos/asf/incubator/shindig/trunk/features/src/main/javascript/features/tabs/tabs.js?p=832845.
In this file, function ‘html_sanitize’ is used. It is a function from caja javascript library.
Shindig website does not provide much useful information about integration of caja. http://incubator.apache.org/shindig/developers/java/build.html#Running_with_Caja
I found a useful wiki page in caja project: http://code.google.com/p/google-caja/wiki/GettingStarted.
Basically the user needs to add following text to ModulePrefs element of the gadget xml file <Require feature="caja"/>
After I changed the gadget xml file, it still didn’t work. It seems that after caja library sanitizes the rendered html/javascript code, some useful code is removed.
My solution
To make it simple, I disabled caja. I just removed invocations of functions belonging to caja library. Concretely, I removed invocations of function ‘html_sanitize’ in file ‘tab.js’
Also, feature ‘minimessage’ also uses caja functions to sanitize html/javascript. If your gadgets use that feature, corresponding changes must be made as well.
When I run tomcat server, I got this weird problem. It seems that tomcat tries to access GUI, which is contrary to my thought that tomcat is a background daemon.
A simple google search brought me lots of posts about this problem: http://www.google.com/search?hl=en&client=firefox-a&rls=org.mozilla%3Aen-US%3Aofficial&hs=ugP&q=tomcat+connection+to+localhost%3A+broken+%28explicit+kill+or+server+shutdown%29&aq=f&oq=&aqi=
According to suggestion from this post http://bugs.mysql.com/bug.php?id=24226, I just unset environment variable *DISPLAY* in *startup.sh*.
In bash, use *unset DISPLAY*
Shindig implements a complex caching hierarchy including referred external resources, locale messages, gadget specification files, etc.
During development phase, the developers want to disable caching to make modifications take effect immediately.
iGoogle announced that legacy gadget APIs (_IG_*) are deprecated:
http://igoogledeveloper.blogspot.com/2009/09/more-things-change-more-they-stay-same.html
http://groups.google.com/group/Google-Gadgets-API/browse_thread/thread/7f1aa77dcf90064c
Migration guide:
http://code.google.com/apis/gadgets/docs/migration.html
It would be great if there is a migration tool that automate the process.
Sling is based on Felix which is an implementation of OGSi. It includes Felix webconsole (http://felix.apache.org/site/apache-felix-web-console.html) bundle to make it easy to inspect OSGi framework. Also Sling integrates Jackrabbit and wraps it as an OSGi bundle. To update Java Content Repository, the client app can send regular HTTP POST requests. In other words, it exposes Java Content Repository in a REST way.
It can be run either independently or in a servlet container (e.g. Apache Tomcat).
Sling: http://sling.apache.org/site/index.html
Useful Sling help: http://felix.apache.org/site/apache-felix-framework-usage-documentation.html
Install and upgrade bundles in Felix web console: http://sling.apache.org/site/installing-and-upgrading-bundles.html
Address of Felix Management Web Console: http://ip_address:port/system/console/
When I clicked “Configuration” link on the top, Null Pointer Exception was thrown out.
It turns out that this is problem of Felix webconsole. See
http://issues.apache.org/jira/browse/FELIX-1135
http://issues.apache.org/jira/browse/FELIX-1028
This post contains some useful information http://groups.google.com/group/sakai-kernel/web/building-3akai-sling.
Download sling (standalone distribution) and unzip the tarball:
http://mirror.cc.columbia.edu/pub/software/apache/sling/org.apache.sling.launchpad.app-5-incubator-bin.tar.gz
Download new version of felix webconsole:
https://issues.apache.org/jira/secure/attachment/12407768/org.apache.felix.webconsole-1.2.9-SNAPSHOT.jar
Assume the new version of webconsole is downloaded to dir <DIR>
Execute following commands in the directory where sling tarball is unzipped.
jar xf org.apache.sling.launchpad.app-5-incubator.jar cd resources/bundles/5/ rm org.apache.felix.webconsole-1.2.8.jar cp <dir>/org.apache.felix.webconsole-1.2.9-SNAPSHOT.jar ./ jar cMf org.apache.sling.launchpad.app-5-incubator.jar resources META-INF org
Run the server:
java -jar org.apache.felix.webconsole-1.2.8.jar -p 4040
Note: you CANNOT use arbitrary new version of felix webconsole without updating other components of felix package. The reason is that different versions of felix console requires different versions of felix core/OSGi.
If you are using both JCR Installer and Felix web console to update a bundle, you will get into trouble.
JCR installer:
http://sling.apache.org/site/jcr-installer-jcrjcrinstall-and-osgiinstaller.html
JCR installer tries to install OSGi bundles/modules found in Java Content Repository.
Bug
“JCR Install prevents update of bundle through other channels like the web console”
http://issues.apache.org/jira/browse/SLING-1106
Wiki: http://en.wikipedia.org/wiki/Content_repository_API_for_Java
JSR 170: http://jcp.org/en/jsr/detail?id=170
JSR 170 API: http://www.day.com/maven/jsr170/javadocs/jcr-1.0/index.html
JSR 283 (JCR 2.0): http://jcp.org/en/jsr/detail?id=283 (in progress)
Jackrabbit: http://jackrabbit.apache.org/
List of Jackrabbit components: http://jackrabbit.apache.org/jackrabbit-components.html
Jackrabbit implements JSR 170 and JSR 283.
When I tried to install Jackrabbit on gridfarm machine which uses NFS V3, I got problem described in this bug report (http://issues.apache.org/jira/browse/JCR-1605). Basically it says Jackrabbit needs some features that are not implemented in NFS prior to V4.
Gadget specification provides a feature called dynamic-height to dynamically adjust height of a gadget.
If gadget server and gadget container are in the same domain, this can be done using javascript.
However, if gadget server and gadget container are in different domains, this can not be achieved by directly using Javascript and DOM because of same-origin policy imposed by modern browsers.
This email http://markmail.org/message/53r5dwhr56lby733#query:dynamic%20height%20shindig+page:1+mid:53r5dwhr56lby733+state:results includes some information about how to make it work.
I am going to give more details here.
<script type="text/javascript" src="rpc.js"></script> <script type="text/javascript" src="cookies.js"></script> <script type="text/javascript" src="util.js"></script> <script type="text/javascript" src="gadgets.js"></script>
Original:New
// The RPC mechanism supports two formats for IFPC (legacy and current). var src = null; if (rpc.l) {
// The RPC mechanism supports two formats for IFPC (legacy and current).
var src = null;
if (false) {This disables use of legacy data format which is buggy.
Detailed discussion: http://docs.google.com/View?id=dmxthpg_125ckh55fff
Cross-Domain Communication with IFrames: http://softwareas.com/cross-domain-communication-with-iframes
During using of Google Calendar APIs, one thing I want to do is publish a new event to a specific non-primary calendar. According to http://code.google.com/apis/calendar/docs/2.0/developers_guide_protocol.html#CreatingSingle, POST requests should be sent to http://www.google.com/calendar/feeds/default/private/full. However that results in putting new event to primary calendar. The document does not tell us how to put a new event to non-primary calendar.
com.mysql.jdbc.CommunicationsException: The last packet successfully received from the server was seconds ago. The last packet sent successfully to the server was 407270 seconds ago, which is longer than the server configured value of 'wait_timeout'. You should consider either expiring and/or testing connection validity before use in your application, increasing the server configured values for client timeouts, or using the Connector/J connection property 'autoReconnect=true' to avoid this problem.
I googled this problem, and it seems that many other persons also suffer this problem. I found some really nice blog posts about how to solve this problem.
According to the error message, I set the option autoReconnect (http://dev.mysql.com/doc/refman/5.0/en/connector-j-reference-configuration-properties.html) to true. But it still does not work. I searched in google and it shows this option works in some platforms while it doesn't work in other platforms.
Basically, the solution is 1) use a connection manager 2) tweak parameters of the connection manager.
C3P0 is a free JDBC connection manager.
Some C3p0 configuration parameters are mapped to Hibernate config. Those mapped configuration parameters are listed at http://www.mchange.com/projects/c3p0/index.html#hibernate-specific.
"Please note that configuration parameters that ARE mapped into hibernate's config file MUST be set within hibernate's configuration, or else they will be overridden by hibernate-specified defaults.
[The hibernate-mapped c3p0 parameters are minPoolSize, maxPoolSize, maxIdleTime, maxStatements, acquireIncrement, testConnectionOnCheckout, and idleConnectionTestPeriod. These map to the fllowing hibernate parameters: hibernate.c3p0.min_size, hibernate.c3p0.max_size, hibernate.c3p0.timeout, hibernate.c3p0.max_statements, hibernate.c3p0.acquire_increment, hibernate.c3p0.validate, and hibernate.c3p0.idle_test_period. DataSources configured in Tomcat should always use c3p0-native parameter names. But pools constructed under the covers by Hibernate must be configured in hibernate's config file with hibernate-defined parameter names where applicable.] "
For those C3p0 parameters that are NOT mapped, they should be specified in file WEB-INF/classes/c3p0.properties.
Note: C3P0 configuration parameter <c3p0.testConnectionsOnCheckout> is mapped to <hibernate.c3p0.validate> only in hibernate 2.x!
Also the configuration parameter c3p0.testConnectionsOnCheckout is really expensive. Users can use c3p0.maxIdleTime (it is mapped to hibernate.c3p0.timeout in hibernate) instead.
<property name="connection.provider_class">org.hibernate.connection.C3P0ConnectionProvider</property>
<property name="c3p0.min_size">5</property>
<property name="c3p0.max_size">30</property>
<property name="c3p0.timeout">600</property>
<property name="c3p0.max_statements">0</property>
<property name="c3p0.acquire_increment">5</property>
<property name="c3p0.idle_test_period">60</property>
The idle test operation can be optimized by specifying option preferrredTestQuery.
I am using MySQL as underlying RDB and putting c3p0.preferredTestQuery = SELECT 1 into c3p0.properties works fine (this is stolen from post comment http://www.databasesandlife.com/automatic-reconnect-from-hibernate-to-mysql/#comment-3156).
A really good article about how to reconnect from Hibernate to MySQL: http://www.databasesandlife.com/automatic-reconnect-from-hibernate-to-mysql/
C3P0 (Connection manager): http://www.mchange.com/projects/c3p0/index.html
How to configure C3P0 in Hibernate: https://www.hibernate.org/214.html
A forum thread about C3P0 configuration in Hibernate: https://forum.hibernate.org/viewtopic.php?t=934779&highlight=c3p0
openssl genrsa -out private_key.pem 1024Convert private key to PKCS8 format:
openssl pkcs8 -topk8 -in privkey.pem -nocryptGenerate public key:
openssl rsa -pubout -in private_key.pem -out public_key.pemRead Base64 Encoded private key
openssl rsa -text -in private_key.pem
openssl req \ -x509 -nodes -days 365 \ -newkey rsa:1024 -keyout private_key.pem -out cert.pem
(1) A user wants to grant data access priviledges to a third-party application.
Here three parties are involved:
User
the end user
Third-Party application
It wants to manipulate user's data on behalf of the user.
Service Provider
a remote application that provides the real service.
The procedure of granting priviledges:
(I) complete steps described in section
(Provider side) > (For regular users)
(II) complete steps described in section
(Consumer side) > (For regular users)
Note: the public key uploaded in step (I) and private key uploaded in
step (II) must match.
(2) A user wants to develop a third-party application for our service.
(I) Register the application by completing steps described in section
(Provider side) > (For thrid-party application developers)
Now, the application can use the service.
(II) To make use of built-in third-party application, complete steps
described in section
(Consumer side) > (For application manager)
(3) A user wants to use a deployed and configured third-party application.
(I) Go to http://yourhost:yourport/oauthConsumer-0.1
(II) Login with existing account and you will be directed to page 'account.jsp'
(III) All supported third-party applications are listed under section
(Available service providers). Click a link to use the corresponding
application.
OAuth message
___________________________________________________________ | | | _________________________________________________ | | | ___________________________________________ | | | | | ______________ _________________ | | | | P| | | | | | | | | | a| | | Payload 2 | | Signature (2) | | | | | y| | |______________| |_________________| | | | | l| |___________________________________________| | | | o| | | | a| ___________________________________________ | | | d| | | | | | | | Other parts | | | | 1| |___________________________________________| | | | |_________________________________________________| | | _________________________________________________ | | | | | | | Signature (1) | | | |_________________________________________________| | | | |___________________________________________________________|
In above figure, <Signature (1)> is calculated using key described in bullet 1. <Signature (2)> is calculated using key described in bullet 2.
I wrote two Java web servlet apps (oauth consumer app, and oauth server app) both of which rely on H2 as database engine. I want H2 to be run in embedded mode instead of server mode. According to the official document, following statement should be added to web.xml
<listener>
<listener-class>org.h2.server.web.DbStarter</listener-class>
</listener>
This class has methods that listen to the servlet context event (context initialization, context destroyed).
When I deploy just one of the two web apps to tomcat, it works fine. When I deploy both of them, following exception is thrown
Exception in thread "main" org.h2.jdbc.JdbcSQLException: Database may be already in use: Locked by another process. Possible solutions: close all other connecti on(s); use the server mode [90020-63]
I am 100% sure that those two apps use different databases. To make myself 200% sure that my code does not create or use additional databases unintentionaly, I rechecked my code many many times. But my code looks just fine. So I doubted it may be because of the H2 database engine.
Then I used command 'lsof' to list opened files by tomcat java process. Surprisingly, a database named 'test' is created under my home directory.
I reread the document http://www.h2database.com/html/tutorial.html#web_applications, and I got what I missed before.
For details on how to access the database, see the file DbStarter.java. By default the DbStarter listener opens an embedded connection using the database URL 'jdbc:h2:~/test', user name 'sa', and password 'sa'.
Code of class DbStarter can be accessed at http://code.google.com/p/h2database/source/browse/trunk/h2/src/main/org/h2/server/web/DbStarter.java.
I am just curious about why a default database is created by class DbStarter.
Solutions
(1) remove the listener declaration in web.xml
In other words, remove <listener> <listener-class>org.h2.server.web.DbStarter</listener-class> </listener>
(2) change url of created database.
<context-param>
<param-name>db.url</param-name>
<param-value>jdbc:h2:your_new_db_url</param-value>
</context-param>
Recently, I tried new version of shindig - shindig-1.1-SNAPSHOT-java (http://incubator.apache.org/shindig/download/index.html). It is a reference implementation for OpenSocial 0.9 spec.
The old problem (described at http://cglreport.zhenhua.info/2009/02/shindig-server-on-tomcat.html) has not been solved.
At first I wanted to try it by deploying the war as root application in tomcat.
One easy solution is to rename the war file to ROOT.war.
I used another solution.
Steps:
Deployment:
(1) create directory <tomcat_root>/myapps
(2) put the war file (shindig-server-1.1-SNAPSHOT.war) to the directory created in step 1.
(3) rename the original directory ROOT. (This step may be overlooked sometimes)
Configuration:
(1) Add file <tomcat_root>/conf/Catalina/localhost/ROOT.xml
(2) Content of the file is
<?xml version="1.0" encoding="UTF-8"?>
<Context
path=""
docBase="/globalhome/zhguo/servers/apache-tomcat-6.0.18/myapps/shindig-server-1.1-SNAPSHOT.war"
debug="0"
reloadable="true">
</Context> (3) restart tomcat
I did not change the process flow of original 3-legged OAuth to support 2-legged OAuth. I made a small change to user authorization step described at http://oauth.net/core/1.0/#auth_step2. Two additional parameters are added to support 2-legged OAuth: user_id and cgl_oauth_signagure. See http://zhenhua-guo.blogspot.com/2009/04/oauth-myproxy-integration-prototype.html for more information.
Integrity check:
Most important information about a client application includes:
A list of client applications is listed and users can add or remove client applications.

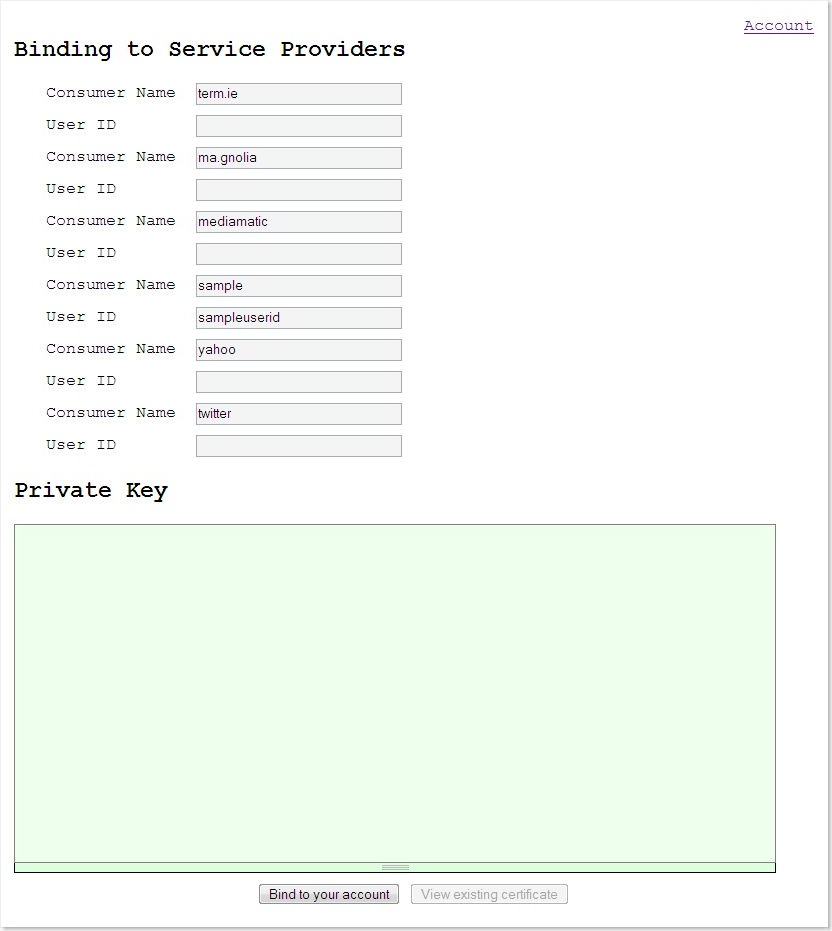

Snapshot:
Users can set userid that is used during invocation of remote service. Also to make it possible for client app to access user data at service provider, the user should upload private key to client app so that correct signature can be generated during OAuth process.
username and password are the only two attributes. Service provider provides interfaces that can be used by third party applications to access users' data.
To register a client app, developers need to follow these instructions:
In my implementation, the registration page can be accessed at <baseurl>/oauthServer-0.1/developerAcc.jsp after our system is installed.

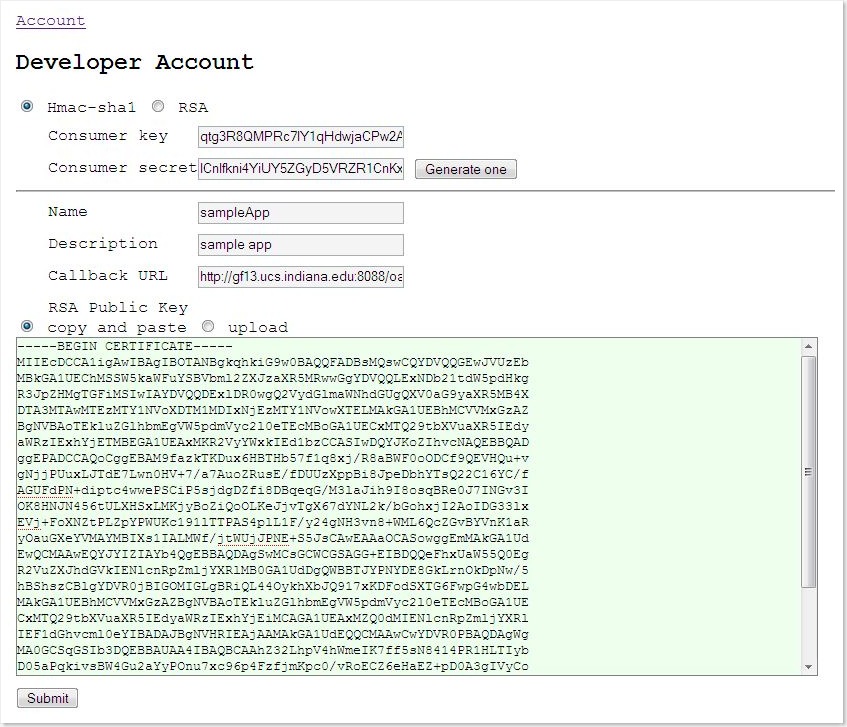

Screenshot:
Some third-party applications may want to access users' data stored at service provider. In 3-legged OAuth, the service provider redirects the user to a web page where the access request can be accepted or denied. In 2-legged, no user intervenetion is involved, so the authorization setting must be preset.
In our system, we provide a way for common users to grant priviledge to and revoke priviledge from client (3rd party) applications. Also the user must upload a public key against which signature of requests receieved from client app can be verified.

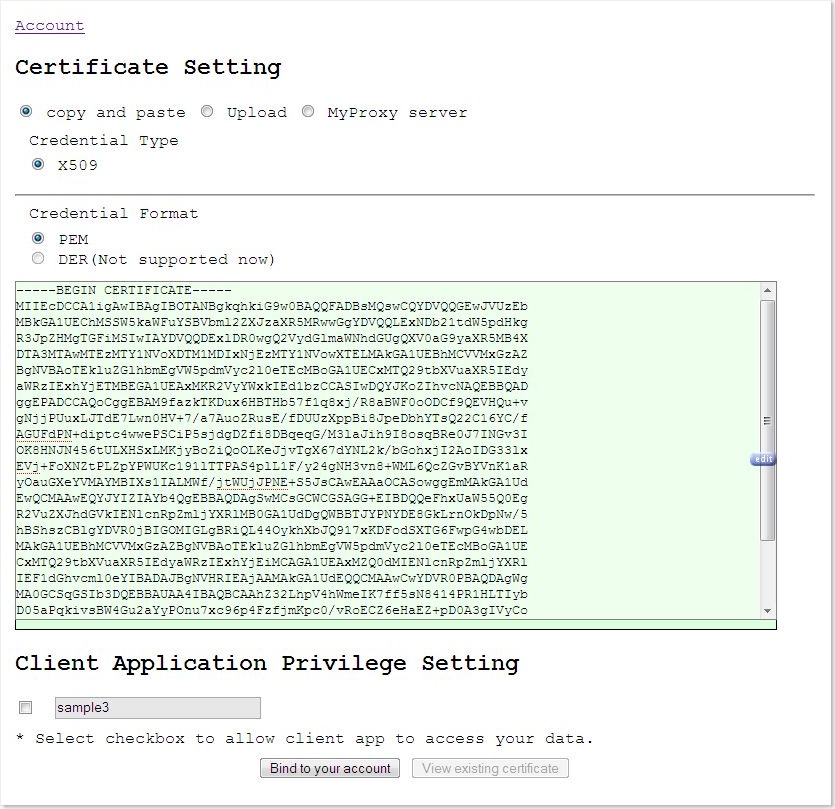

Snapshot
Recently, I have encountered a http session problem in jetty.
I start two Jetty instances on the same machine. These two jetty instances share the same base URL, but port numbers are different.
http://example.com:8000/
http://example.com:9000/
When I visit http://example.com:8000/, a cookie (called JSESSIONID) is set by the server automatically.
After that I visit the other URL http://example.com:9000/, the cookie set for http://example.com:8000/ is sent to the server by user agent. The the server gets confused :-(
After debugging it, I found the reason is that the server does NOT include port number in the Set-Cookie header. According to section 3.3.1 in RFC 2965, if the port attribute is missing in the Set-Cookie header, the user agent would react based on following description:
Port The default behavior is that a cookie MAY be returned to any
request-port.
That means if a cookie is set for address A, the cookie also matches those addresses which share all the same URL components with A but port number.
For tomcat, I searched its email list
http://www.google.com/search?hl=en&client=firefox-a&rls=org.mozilla%3Aen-US%3Aofficial&q=cookie+port+site%3Ahttp%3A%2F%2Fmail-archives.apache.org%2Fmod_mbox%2Ftomcat-users%2F&btnG=Search
It seems that port number currently is not supported in cookie management.
Solution
(1) use different domain names which map to the same IP
(2) use different paths.
E.g.
http://example.com:8000/webapp1
http://example.com:9000/webapp2
Client is the consumer of backend services.
Functionalities
Functionalities of the service provider:
In OAuth authorization procedure, there are three main steps:
Then the access token acquired in step (3) is used to access protected resources.
Trust relationship between client app and service provider is built out of band. Two mechanisms are supported: shared secret and RSA.
In my solution, step (2) is extended with step (1) and (3) staying the same. Two additional parameters are added: user_id and cgl_oauth_signagure. Parameter user_id is described here. The cgl_oauth_signature is calculated against user_id using the user's private key. After service provider receives the request, the corresponding public key (retrieved from MyProxy server) is used to verify the signature.
I got a virtual machine which I can log in as root. The virtual machine is pretty clean without any more packages besides CentOS.
I installed vim using yum install vim-enhanced. I also installed jdk1.5 and maven2.
Then I checked out the source code from shindig svn trunk. See instructions here http://incubator.apache.org/shindig/#tab-building.
Unfortunately, the test failed when I compiled and installed shindig. This kind of things always happens because of instability of trunk code. So I copied my previous checkout of shindig code which worked well from another machine. Then the compilation and installation succeeded.
Now the sample demo is here:
http://gw11.quarry.iu.teragrid.org:9999/gadgets/files/samplecontainer/samplecontainer.html
Set field "Displaying gadget" to http://156.56.104.196:8888/oauth/gadgets/os_gadget.xml, Uncheck "use cache".
Click button "reset all". If everything works fine, you would see following in main panel:
Clieck "Personalize this gadget", a popup window would appear which prompts you to login to your google account. Then you can choose grant or deny the access request. If you grant the request, the popup window would be closed automatically, and the main panel would be populated with your google contact list.
Create a iframe and set the content directly:
var frame = document.createElement('iframe');
parentElement.appendChild(frame);
frame.contentDocument.write(result);According to Dom level 2 HTML specification, contentDocument is a property of HTMLIFrameElement.
Following code may also work. However I have not found the contentWindow property in W3C DOM specification.
var frame = document.createElement('iframe');
parentElement.appendChild(frame);
frame.contentWindow.document.write(result);
For OpenSocial gadgets, OpenSocial containers are necessary to hold users' data (friends, profile, ...). In Javascript API, class opensocial.DataRequest can be used to get users' data from the container which renders the gadget.
But to integrate users' data from third-party OpenSocial containers, some additional steps are needed. opensocial.DataRequest does not allow gadget developers to specify which OpenSocial container would be used to serve the data. Also the gadgets can not send requests directly to third-party containers because of Same-Origin policy imposed by browsers.
Method gadgets.io.makeRequest can be used to send arbitrary HTTP GET/POST requests. These requests are sent to the original container first. The original container does some processing and relays the requests to the destination address.
http://code.google.com/apis/opensocial/docs/0.8/reference/gadgets/#gadgets.io.makeRequest
http://code.google.com/apis/opensocial/articles/makerequest-0.8.html
http://code.google.com/apis/gadgets/docs/remote-content.html
Both REST and RPC protocol specifications requires that compliant containers must be OAuth service provider:
http://www.opensocial.org/Technical-Resources/opensocial-spec-v081/restful-protocol (Section 4)
http://www.opensocial.org/Technical-Resources/opensocial-spec-v081/rpc-protocol
Also I found OAuth Consumer Request 1.0 Draft 1 (hosted at googlecode, not oauth.net) which standardizes two-legged authorization process without a User involvement. It is useful in server-to-server interaction.
How to use OAuth in gadgets
http://code.google.com/apis/gadgets/docs/oauth.html (Very useful)
http://sites.google.com/site/oauthgoog/oauth-proxy/social-oauthproxy
OpenSocial container list:
http://wiki.opensocial.org/index.php?title=Main_Page#Container_Information
Extensions:
Also, I found many OAuth extension drafts which are not listed in OAuth.net. I guess these extensions are implemented in Shindig and evaluated.
http://oauth.googlecode.com/svn/spec/ext/
By default, directory listing (list content of a directory instead of render a web page) is forbidden in Tomcat.
To enable it globally, modified file <tomcat>/conf/web.xml.
Default setting for default servlet is:
<servlet>
<servlet-name>default</servlet-name>
<servlet-class>org.apache.catalina.servlets.DefaultServlet</servlet-class>
<init-param>
<param-name>debug</param-name>
<param-value>0</param-value>
</init-param>
<init-param>
<param-name>listings</param-name>
<param-value>false</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
Change the param-value for parameter listings to true.
To enable it for a specific web application, add following snippet to the web.xml of the application
<servlet>
<servlet-name>default_new</servlet-name>
<servlet-class>
org.apache.catalina.servlets.DefaultServlet
</servlet-class>
<init-param>
<param-name>debug</param-name>
<param-value>0</param-value>
</init-param>
<init-param>
<param-name>listings</param-name>
<param-value>true</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<!-- The mapping for the default servlet -->
<servlet-mapping>
<servlet-name>default_new</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>Note: servet-name can not be default because it is name of tomcat's default servlet . So you need to use a different name. Also servlet-mapping element is necessary to make it work.
Shindig can be run with built-in jetty server without problems. But after I deployed the war to Tomcat, there are some problems. I got a blank page when I tried to render a gadget. I searched for the problem, some other guys got this problem as well.
Other posts related to this problem:
http://mail-archives.apache.org/mod_mbox/incubator-shindig-dev/200805.mbox/%3C483C780B.6080802@oracle.com%3E
Finally I figured out how to make shindig work on Tomcat.
Why does not it work?
It ignores the context path. In other words, the implementation only considers the situation that the application is deployed as root application.
Two possible Solutions
(1) make shindig war the root application
Two alternative ways:
(*) rename it to ROOT.war and deploy it to tomcat. (The original ROOT application cannot be used)
(*) change conf/context.xml to set shindig application as root application
(2) Modify shindig configuration files <shindig>/java/common/conf/shindig.properties and <shindig>/config/container.js to add context path in all related urls.
It seems to work well. I am not sure whether there is any potential problem.
Posts
All Comments
