In previous implementation, I separated jobs from workflows. A job is a small task which currently is written in Karajan workflow language. Here, it is kind of confusing. Karajan workflow language is used to represent a job. A workflow consists of jobs number of which is variable. A workflow queue consists of some workflows. Workflows in a workflow queue can be executed in arbitrary order, which means that these workflows are totally independent. However, jobs in a workflow are usually related so that they should be executed in a certain order. Essentially workflow queue and workflow do not have fundamental difference because we can convert between them. So, difference is in logical level.
Now, workflow queue is supported.

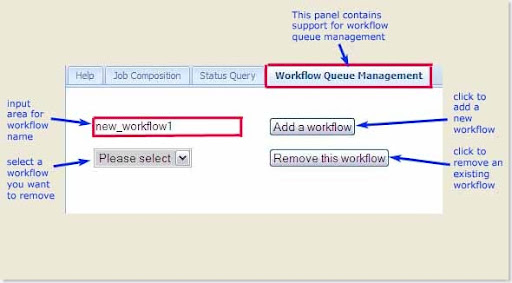

Workflow management panel

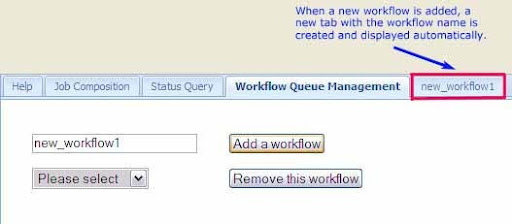

When a new workflow is added, a new tab is created.
When an existing workflow is removed, the associated tab is removed from the user interface.

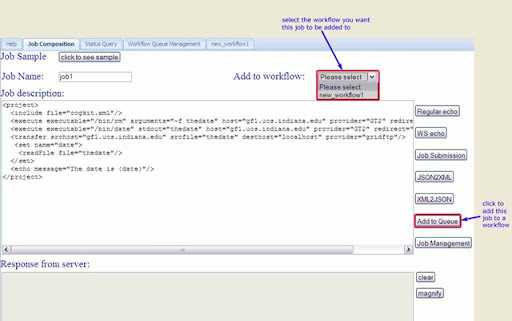

When a user creates and adds a new job, it can add this job to any existing workflow. Because we have created a workflow called "new_workflow1", this workflow appears in the drop box.

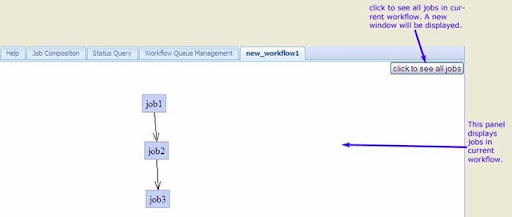

When a user switches to the workflow panel, all jobs belonging to the workflow will be displayed in a canvas. What's more, relationship between jobs is displayed as well.
When a user wants to see details of all jobs in a workflow, he/she can click button "click to see all jobs" and then a pop-up window is displayed to show detailed information.
